Arduino DCF77 radio clock receiver 24

Posted by md on November 05, 2006


As a first sketch, I developed a little DCF77 library for the arduino. The DCF77 sender broadcasts the exact time in Germany. It uses a binary format which needs to be decoded – which is exactly what the library does.

There are others around who wrote a DCF77 decoder: I would like to thank Captain for his DCF77 code. You need to have an Arduino and a DCF77 receiver in order to use this sketch.

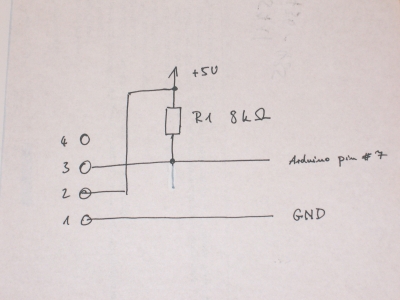

I use the “DCF-Empfänger BN 641138″ of Conrad. You need a pull-up resistor as displayed here:

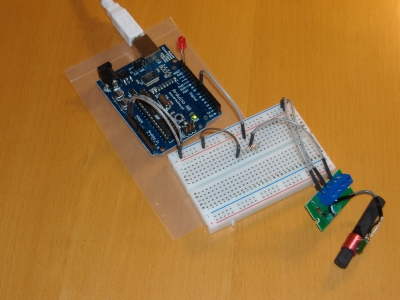

When everything is connected, the exact time is printed on the serial line. Note that this is a very early release of the software – there is a lot of functionality missing. From the README:

The current todo list is:
 * Use interrupt routines for detecting signal changes
 * Use interrupt routines to add seconds automatically
   (currently, the 59th second is shown properly)
 * Implement parity checks to prevent faulty time
   signals to be evaluated

The sketch eats up 6400 of the 7168 bytes in the Arduino. I am currently considering to upgrade my board to the ATMega 168 processor in order to have 16kb of memory…

You can download the code here:

The code is released under terms of the CC-GNU GPL.


Use this link to trackback from your own site.


Leave a response

  1. ale Sat, 26 Jan 2008 12:40:43 UTC

    hallo, nice idea!
    But is it so that the Arduino can get the time ONLY when you plug in the DCF77 or time is checked every now and then?

  2. md Mon, 28 Jan 2008 10:11:43 UTC

    In a private eMail, ale asked:

    “Does your arduino code check the time on the DCF77 only once or it updates the time once in a while? I’ve read you still didn’t implement interrupts, but may be there’s a dummy time-update every.. ‘n’ seconds?”

    Actually, the time is only updated when the DCF77 receiver is connected. I receive an external interrupt each second from the receiver. While I update my internal buffers, I also update the current second counter. If the received time is valid (i.e. the checksums match), I use this time as the current time. If something goes wrong, I use the old (internal) time which has been updated each second.

    So, to sum it up: This version relies on a working receiver all the time.

  3. ale Tue, 29 Jan 2008 10:06:34 UTC

    thanks for your answers! I’ll try the code as soon as I get a DCF77 receiver. Btw, you think that you can find a DCF77 receiver disassembling a DCF-clock? Some of them are ridicously cheap..

  4. md Tue, 29 Jan 2008 10:29:41 UTC

    hi ale,

    I heard of someone who disassembled an old radio-controlled clock and just used the receiver. Unfortunately, I don’t have a link ;-) You can try it. Typically, a DCF77 receiver module has an open-collector signal output as well as GND and VCC to power the module – so it’s pretty simple to connect. However, I don’t know whether the input voltage of 5V would be tolerated by a custom-build receiver for another device.

    On the other hand, tinkering for 3 Euros… Give it a try and tell me!


  5. rudi niemeijer » Retrodagen Mon, 24 Nov 2008 13:47:14 UTC

    [...] Microcontroller bestuurde klok met DCF Een langjarig project, deze klok. Ik heb er ieder jaar een ander idee over, maar er zijn wat gelijkblijvende factoren: LED-matrix, nét groot genoeg, ook ‘foefjes’ op het display, lichtsensor, DCF-ontvanger, uitbreidbaar en/of aanpasbaar. Dit is een leuk voorbeeld, of deze, of hier, Arduino met DCF. [...]

  6. Khan Wed, 17 Dec 2008 01:26:41 UTC


    I got one “radio clock receiver” from Conrad. But,it does not work, it seems that this code is not compatible for my Arduino board(Diecimila).

    Because, following statement does not work on my arduino program, if I used “#include ” in my code.
    Serial.println(“bla bla”)

    Actually, your code, it self does not give any compilation error, but in my program it does not show any output, I tried to debug it using Serial.println(“”); , but it gives error.

    Your help in this matter will be really appericiated!



    #define redPin 13

    int DCF77Pin=7;
    int blinkPin=13;
    int seconds=0;
    int previousSecond =0;
    int minutes=0;
    int hours=0;
    DCF77 myDCF=DCF77(DCF77Pin);

    void setup(void) {
    pinMode(blinkPin, OUTPUT);

    void loop(void) {
    int DCFsignal = myDCF.scanSignal();
    if (DCFsignal) {
    digitalWrite(blinkPin, HIGH);
    } else {
    digitalWrite(blinkPin, LOW);
    if (seconds != previousSecond)
    previousSecond = seconds;

    Best regards
    Ali Mahmood Khan

  7. md Wed, 17 Dec 2008 21:48:00 UTC

    Hi Khan,

    You write “Because, following statement does not work on my arduino program, if I used “#include ” in my code. Serial.println(”bla bla”)”. This actually sounds to me as if your development environment is somehow broken. In the code snippet you posted, there is no Serial.println(foo) anyway. It would also be helpful if you could post the error message.

    Please note that I don’t know whether the code will work on recent Arduino development environments or the Diecimila board (although the board is compatible, AFAIK).


  8. rudi niemeijer » Arduino met DCF77 ontvanger Sat, 27 Dec 2008 19:53:56 UTC

    [...] wordt op het internet al een tijdje gewerkt met de Arduino en een externe (Conrad) DCF77 ontvanger, maar er valt nog [...]

  9. Fab Sat, 31 Jan 2009 22:38:58 UTC

    Have you tried to setup the serial connection? ;)

    Now, in my house are:
    Time: 22:32:38 Date: 31.1.2009

    void setup(void) {
    pinMode(blinkPin, OUTPUT);
    // open the serial port at 9600 bps:

    Tnx for your dcf77 code! :)


  10. Dag Israelsson Thu, 05 Mar 2009 10:11:02 UTC

    Hi! I have now the DCF-Empfänger BN 641138″ of Conrad. BUT it is not working very well. I live in Sweden, 250 km west of Stockholm. Maybe the BN 641138 can’t handle this distans? I am reciving pulses but only now and then. Any idea? Positioning the BN 641138 don’t seem to help.
    Best regards


  11. md Thu, 05 Mar 2009 10:17:58 UTC

    Hi Dag,

    my suspicion is that the receiver is not able to pick up the signal reliably. Be careful, it needs some minutes sometimes to stabilize – so just try to leave it alone for some time. You might also try to change the value of the pullup resistor – I found that there is quite some tolerance from one receiver to another.


  12. Lars Mon, 27 Apr 2009 19:26:58 UTC


    I’m quite new to Arduino & Co and I was wondering if you could explain to me why exactly we need a pull-up resistor here and how you figured out that you need one with 8 kOhm?


  13. Nick Sun, 09 Aug 2009 01:02:54 UTC

    I’d like to second Lars’ question, I’d like to know the same thing. Thanks!

  14. md Sun, 09 Aug 2009 10:53:07 UTC

    @Lars: sorry, I did not write a reply so far – call me lazy :-)

    The pullup-resistor is needed because you want to supply pin #7 with a defined voltage at all times. Look at the schematic: if the DCF77 pin 3 (lets call it signal) is in an undefined state, you will receive noise on pin #7 of the arduino (lets call it receiver).

    So, in order for the receiver to be in a defined state at all times, you connect it to either +5V (pull-up) or GND (pull-down). If you would do so without a resistor, this could be a short-circuit (if any of signal or receiver are at a low level). You definitely want to avoid this. (Side note: ATMega pins are tristates. In this context it means that an uninitialized pin will connect to ground – which will force all available power of your short-circuit through the ATMega. They are pretty robust – but not that robust.)

    To do so you just use a resistor to limit the current that flows from 5V to GND. Usually people use with a 10k resistor. In this circuit I found the DCF77 signal reception to be better with 8k. I didn’t calculate this, I found the value through experimentation. I rarely calculate anything in my schematics, this is hobby, not work :-)


  15. Alexander Tue, 15 Sep 2009 08:54:23 UTC


    I have recently got the DCF77 module from Conrad, and connected it to my Arduino Duemillanueve. My DCF77 module is highly unstable. I am unable to recieve one signal/second, i get anything from 4signals/second to 0signals/second. It just depends on how the module is lying on my desk.

    My guess is that this module isnt able to detect DCF77 signals outside of central Europe(i live in the south of Sweden).


  16. md Wed, 16 Sep 2009 16:40:15 UTC

    Hi Alexander,

    have a look here:
    Gwen was having similar problems, maybe his solution works for you.


  17. Stefan Mon, 19 Oct 2009 21:47:18 UTC

    Hi md,

    I have some trouble, to get my clock running…
    I’ve got a signal but no value coming in :(

    maybe my debug text can help you to find an answer:

    Initializing DCF77 lib
    Using DCF77 pin #…
    Time: 0:0:1 Date: 0.0.0
    Time: 0:0:1 Date: 0.0.0
    : Double flank detected
    0: DCF77 Signal detected, Time: 0:0:1 Date: 0.0.0
    duration: 171, appending value  at position 0
    Time: 0:0:2 Date: 0.0.0
    Time: 0:0:2 Date: 0.0.0
    : Double flank detected
    0: DCF77 Signal detected, Time: 0:0:2 Date: 0.0.0
    duration: 409, appending value  at position 0
    Time: 0:0:3 Date: 0.0.0
    Time: 0:0:4 Date: 0.0.0
    648: DCF77 Signal detected, Time: 0:0:4 Date: 0.0.0
    duration: 102, appending value

    thanks a lot,

  18. soulid Sun, 18 Apr 2010 20:44:52 UTC

    I am asking myself if there is any software switch when to believe the the DCF time is correctly received and does not have any outages.
    Is there somthing I didn’t see?

  19. [...] » Blog Archive » Arduino DCF77 radio clock receiver – [...]

  20. orang Sat, 11 Sep 2010 20:23:10 UTC

    I tried to get your code to run on a Duemilanove which didn’t work at first. I figured out some very small changes in the names of some of the timers used by the ATMega 328. Might be useful for the people getting here from the arduino playground. Just rename the timers in the original code to the ones listed below:


    Compile, upload to your Duemilanove and have fun!

  21. BajK Thu, 07 Oct 2010 13:14:52 UTC

    The DCF-Empfänger you specified is no longer available (under that name?) at Conrad.
    Stick with this one:

  22. BajK Thu, 21 Oct 2010 11:57:21 UTC

    So, I built everything together as specified in your sketch and the receive LED blinks well in like five seconds intervals differenting but it only gets time 0:0:0 and date 0.0.0 and sometimes time 0:0:1 or 0:0:2

  23. Koelewijn Sun, 31 Oct 2010 21:57:40 UTC

    Hi there,
    I have this module :
    But it has only an inverted output. Can anyone help me with the code/schematic for arduino?
    Thanks a lot..

  24. Lyrez Tue, 30 Nov 2010 22:05:12 UTC

    I tried my DCF77 module, and happened to encounter same troubles as many ( as several peaks per second, or 5 peaks per second then nothing) and then i hooked up a low pass filter (made with a 4.7mH inductor and a 10µF capacitor) on the power line of the DCF77 (I use a arduino mega, and my DCF is powered by 3.3V, but it should work as well on 5V)
    Then, there’s a real improvment, i can “lock” in one or two minutes). I live in North France, that is no really very close to Frankfort …
    Hope this helps !
